Ultrasonic Cleaning Lens Unit for Automotive is compact lens unit that can atomize water droplets on the lens surface Ultrasonic vibration of the outermost lens.

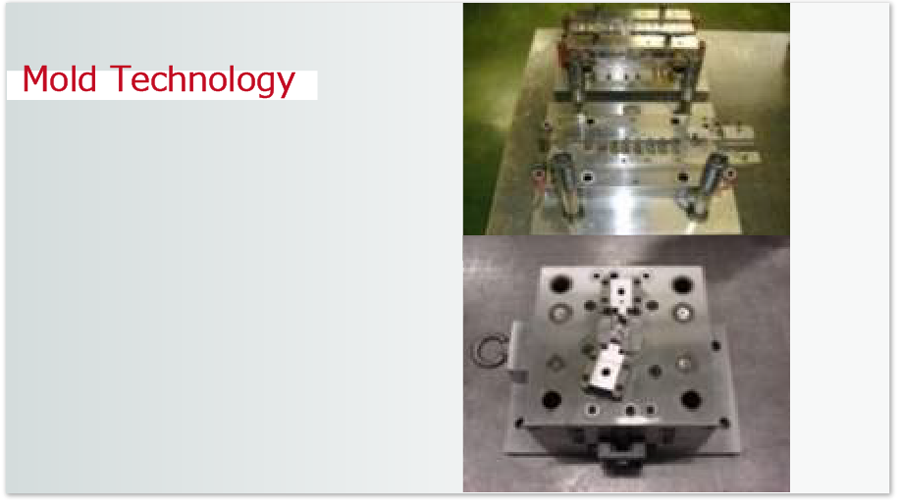

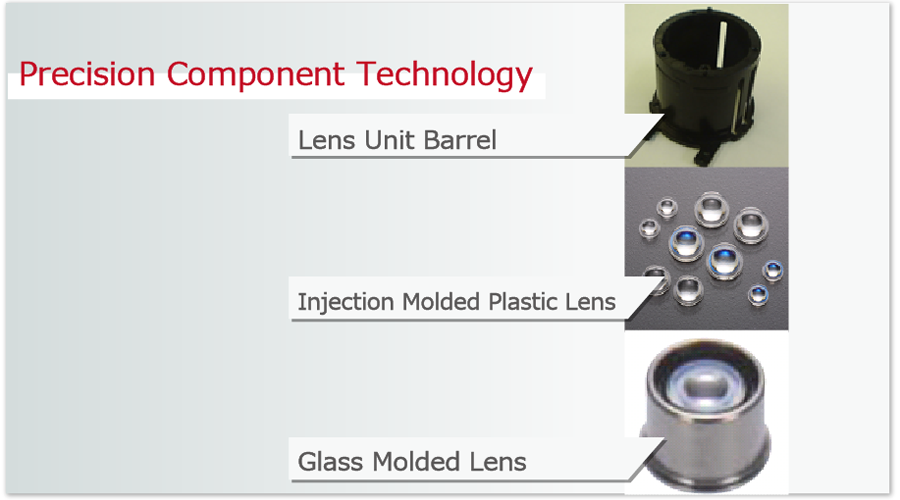

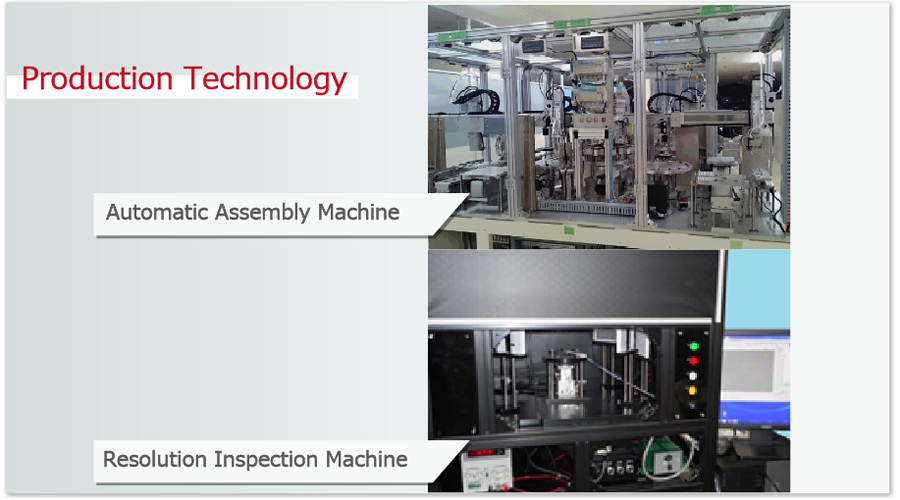

Lens unit with high resolution and low distortion features Maxell's unique optical design and precise molding/assembling technology. Suitable for front sensing camera for ADAS (Advanced Driving Assistant System) and Camera Monitor systems (CMS) for automotive mirror-replacement.

• Angle of Horizontal View: 45 deg.(°) to 80 deg.(°)
• Designed for wide operation temperature range
• Suitable for Mega-pixel image sensors

Item	Angle of Horizontal View	Sensor Size	Resolution	Images
VCC67HK1	57 deg.(°)	1/3 inch	Mega
VCC67HK2	52 deg.(°)	1/3 inch	Mega
VCD59A	45 deg.(°)	1/3 inch	Mega	-
VCD54A	80 deg.(°)	1/3.7 inch	VGA	-

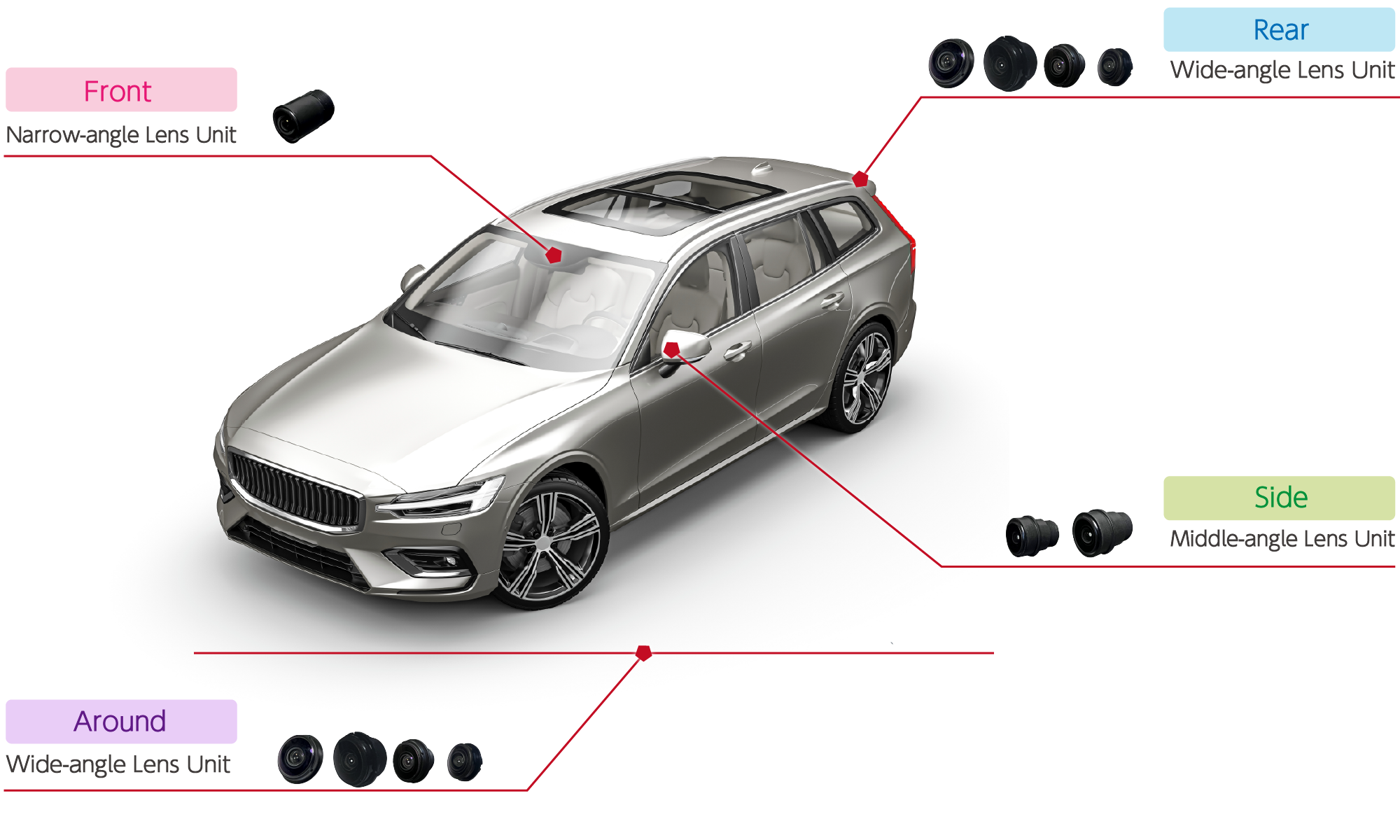

Compact and short fish-eye lens unit features Maxell's unique optical design and precise molding/assembling technology. Having durability and sealability required for vehicle mounting, and suitable for AVM (Around View Monitor) camera system.

• Angle of Horizontal View: more than 180 deg.(°) (fish-eye lens)
• Designed for wide operation temperature range
• Special hydrophobic coating to repel water droplets on the lens surface
• IP6K9K conforming sealing structure to prevent water intrusion even during the car wash
• Suitable for VGA to Mega-pixel image sensors

Item	Angle of Horizontal View	Sensor Size	Resolution	Images
VCB51A	180 deg.(°)	1/3.7 inch	VGA
VCB63A	198 deg.(°)	1/4 inch	Mega
VCC88D	190 deg.(°)	1/2.7 inch	Mega
VCC36HT	190 deg.(°)	1/2.7 inch	Mega	-

Lens unit ideal for CMS (Camera Monitoring System: automotive mirror alternative system). It's straylight suppressed design is suitable for HDR image sensor and features Maxell's unique optical design and precise molding/assembling technology.

• Angle of Horizontal View: 52 deg.(°) to 130 deg.(°)
• Designed for wide operation temperature range
• Special hydrophobic coating to repel water droplets on the lens surface
• IP6K9K conforming sealing structure to prevent water intrusion even during the car wash
• Suitable for Mega-pixel image sensors

Item	Angle of Horizontal View	Sensor Size	Resolution	Images
VCC67HK1	57 deg.(°)	1/3 inch	Mega
VCC67HK2	52 deg.(°)	1/3 inch	Mega
VCD38A	100 deg.(°)	1/2.7 inch	Mega
VCE38A	130 deg.(°)	1/2.7 inch	Mega

Glass lens unit with high resolution and low distortion Applications: - Front sensing camera for ADAS (Advanced Driving Assistant System) - Camera Monitor systems (CMS): automotive mirror alternative system

• Angle of Horizontal View: 52 deg.(°) to 80 deg.(°)
• Designed for wide operation temperature range
• Suitable for Mega-pixel image sensors

Item	Angle of Horizontal View	Sensor Size	Resolution	Images
VCE32GE	57 deg.(°)	1/3 inch	Mega	-
VCE40GI	80 deg.(°)	1/3 inch	Mega

Lens unit optimized to the near-infrared light (NIR) which is invisible to the human eye. A clear image is obtained even in a dark condition by combining it with infrared lighting, and suitable for night vision system, DMC (Driver Monitoring Camera) system and security system.

• Angle of Horizontal View: 40 deg.(°) to 50 deg.(°)
• Designed for wide operation temperature range
• Optimized for use in near-infrared light

Item	Angle of Horizontal View	Sensor Size	Resolution	Images
VCC75A	40 deg.(°)	1/3.2 inch	Mega	-
VCC55A	45 deg.(°)	1/3.2 inch	Mega
VCC97A	50 deg.(°)	1/2.7 inch	Mega	-
